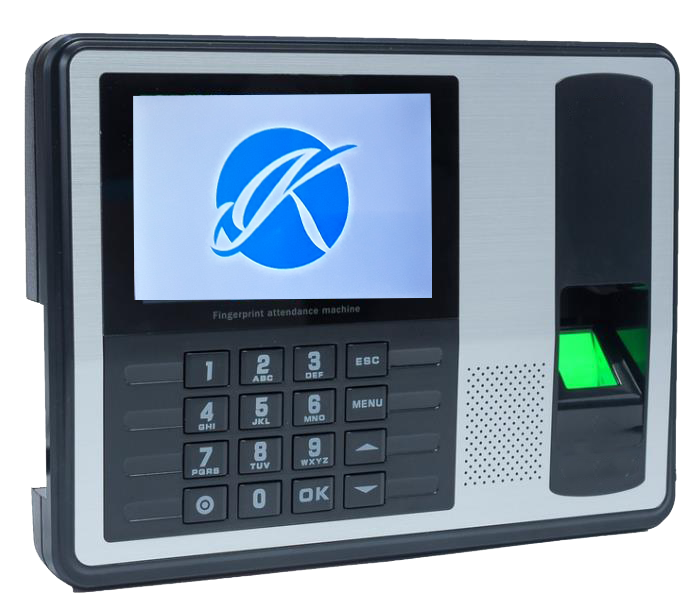

Model P7200

• Linux operating system

• Atmel 9G25(400MHz) CPU

• Fast recognition speed

• BS and CS can be freely switched

• The interface and voice of the machine can be freely switched

• Multi optional function

• High precision total reflection optics scanner

Functional Specification

Description	Parameter
Storage Capacity	2,00,000 Records
Fingerprint capacity	3,000 Templates
Password Capacity	3,000 Templates
CPU	Atmel 9G25(400MHz)
Working way	Online & Offline
Operating System	Linux
Identification	Fingerprint and Password
Recognition speed	≤0.5s

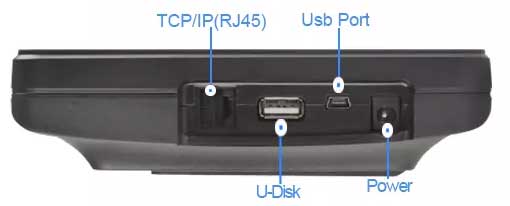

Communication way	TCP/IP, USB
Effective collecting area	16 x 16 mm

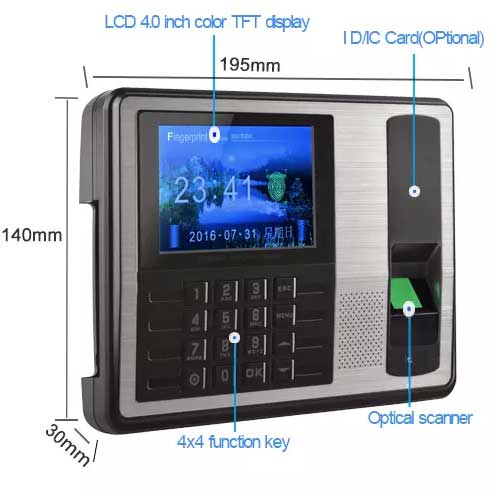

Display	4.0 inch high-definition color LCD screen
Power	DC5V/1000mA
Optional Functions	– RFID card – WIFI(inside) – Simple access control
